Wood pellet mills
Flat-die pellet mills and production equipment for processing suitable wood residues. Output depends on the feedstock, moisture, particle size and machine configuration. Discuss your material and required output before choosing a model.

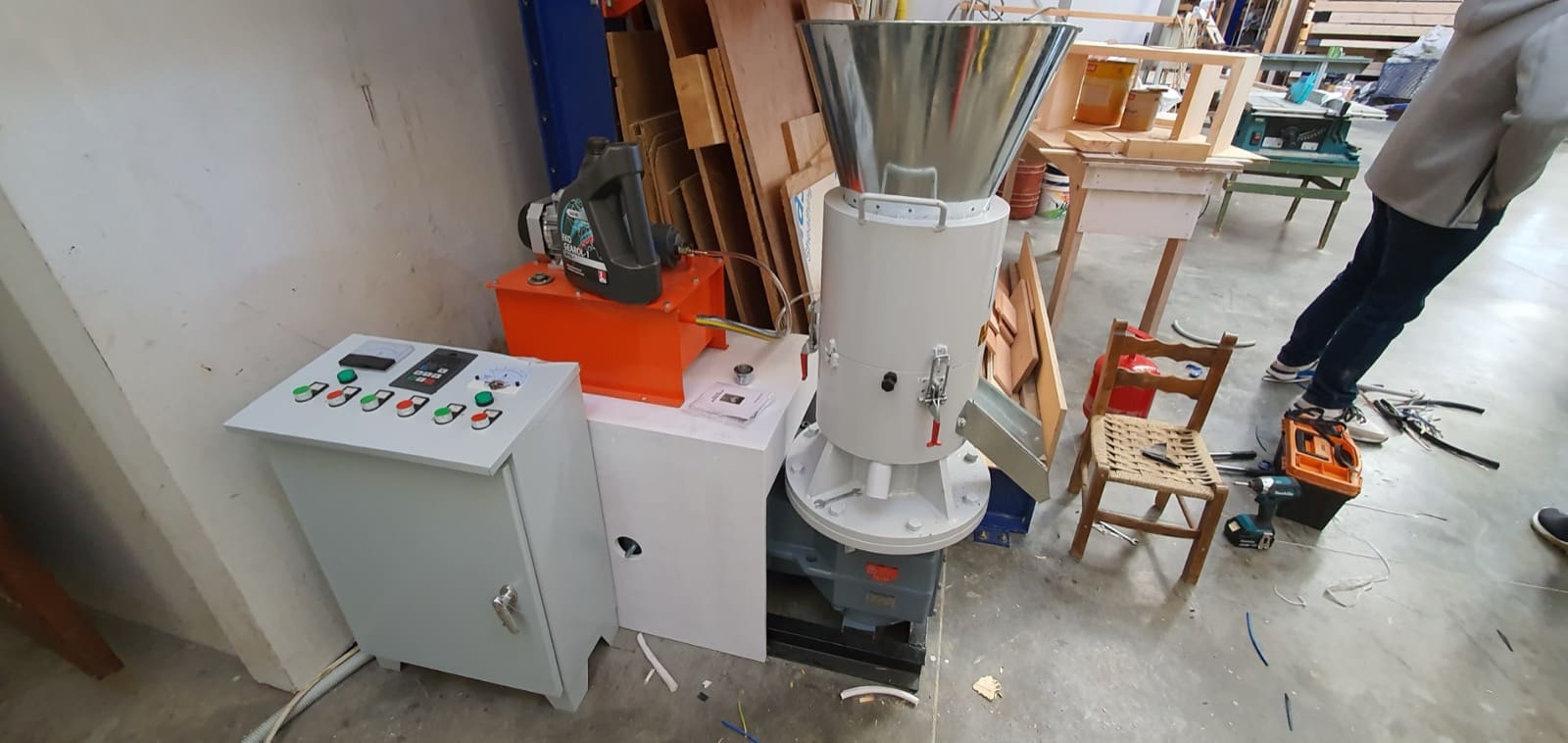

Flat-die models
Stationary flat die with rotating rollers, automatic feeding and automatic lubrication. Confirm the feedstock preparation, motor, electrical supply and supplied equipment for your order.
Ask about availability
Discuss a pellet mill| Model | Motor | Output | Dimensions (mm) | Weight |
|---|---|---|---|---|
| FD260 | 15 kW | 100–200 kg/h | 1120×400×1060 | 500 kg |
| FD300 | 22 kW | 200–300 kg/h | 1280×560×1220 | 800 kg |
| FD350 | 30 kW | 300–400 kg/h | 1300×600×1250 | 900 kg |
| FD400 | 37 kW | 400–600 kg/h | 1390×650×1290 | 1,000 kg |
| FD450 | 45 kW | 600–800 kg/h | 1620×700×1600 | 1,500 kg |
| FD550A | 55 kW | 700–1,000 kg/h | 1700×700×1600 | 1,800 kg |
| FD550B | 75 kW | 1,000–1,200 kg/h | 1750×750×1700 | 2,400 kg |
